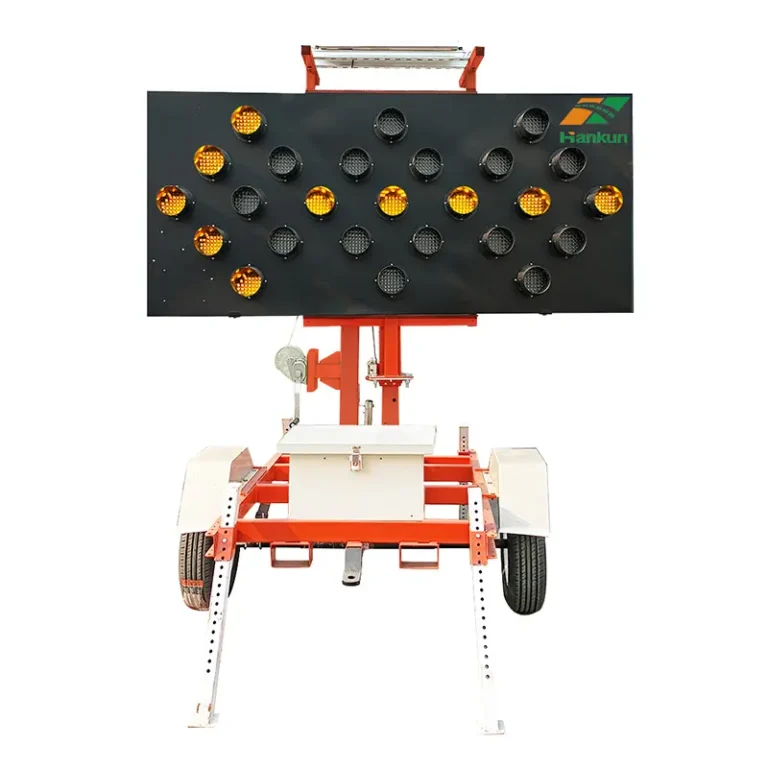

High-performance mobile LED traffic control system designed for emergency response, roadside safety, and dynamic traffic management.
Key Operational Selling Points:
• Vertical Mast 360° Display
• Single-Person Rapid Deployment
• Solar + 72H Backup Power
Global Delivery & Service Commitment:
• 30,000+ Units Supplied
• Multi-Port Sea Shipping
• MUTCD & CE/RoHS Certified
Share：
⦁ 360° Rotating Display Board

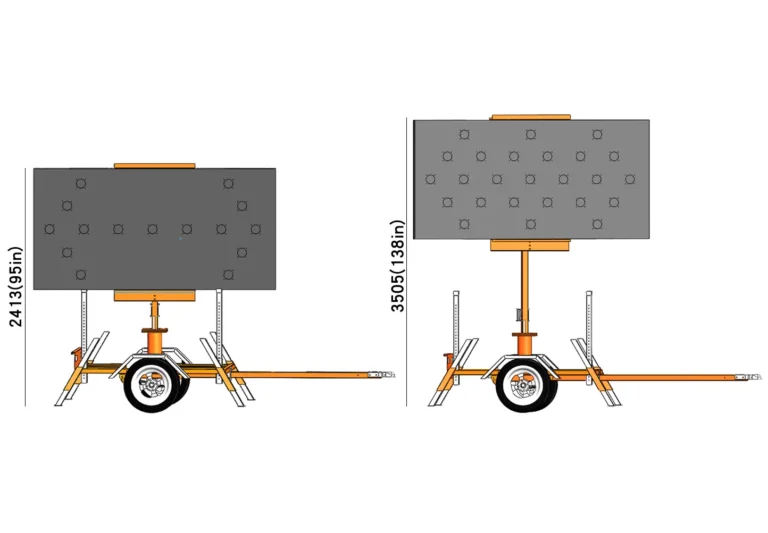

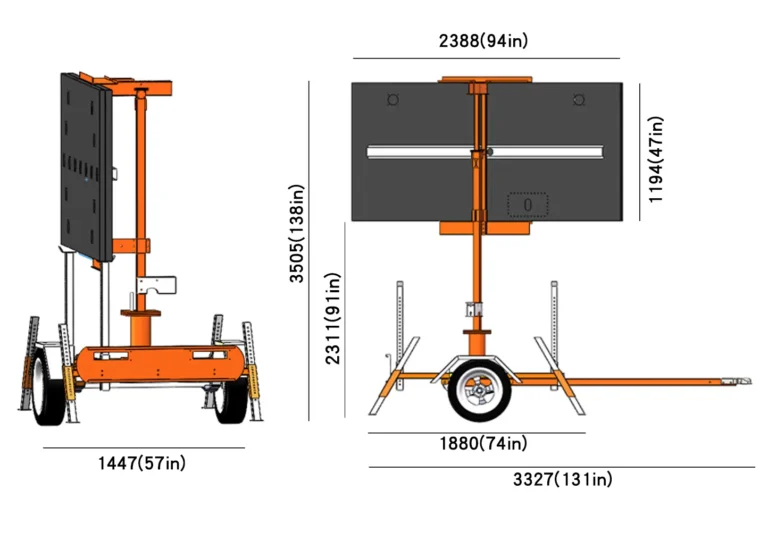

⦁ 6–12 ft Manual Height Adjustment
⦁ 15-light / 25-light options
⦁ Quick Deployment
⦁ Lightweight 150 lbs Net Design
⦁ Lightweight 150 lbs Net Design
⦁ Heavy-duty Safety Brake System
⦁ Wind-resistant Steel Stabilizers
⦁ Solar Power with 72h Backup
| Parameter A | Specification A | Parameter B | Specification B |
| WEIGHT | Approx. 1250 lbs. (567 kg) | STANDARDS COMPLIANCE | MUTCD type C |
| Trailer | All welded structural steel | Battery type | Leak- and spill-proof valve-regulated lead acid (VRLA) |
| Arrow board | Aluminum sheet and welded channels | Battery voltage | 12 Vdc |
| Coating | Powder-coated and oven-baked | Battery capacity | 36 Ah total |
| Axle assembly | 2000-lb. capacity tubular axle | Number of batteries | Two |
| Hub Pattern | 5-hole 4.5-inch bolt circle pattern on idler hub | Solar charging | One solar panel |
| Wheel Track | 60-inch wheel track | Solar panel regulation | 50 W |
| Springs | Double eye leaf springs, 1200-lb capacity per spring | Tires | ST205/75 D15 |
Q1. What are movable solar vertical mast arrow boards?
They are portable traffic control signs with a vertical mast and solar-powered LED arrow display designed for temporary road safety applications.
Q2. What are the main benefits of movable solar vertical mast arrow boards?
They offer easy transport, quick deployment, high visibility, and reliable off-grid operation for construction and emergency traffic control.
Q3. Where can movable solar vertical mast arrow boards be used?
They are commonly used on highways, urban roads, work zones, lane closures, and remote sites without stable power access.
Q4. How long can a solar vertical mast arrow board operate without sunlight?
Most models can run for many hours or even several days with built-in battery backup, depending on the battery capacity and usage mode.
